SPECIFICATIONS
Angle of View: 98°
Application: indoor
Brand Name: NOVEL
Customized support: OEM, ODM
Data Storage Options: Unsupported
Focal Length: 2.8mm
Function: Wide Angle
Model Number: UC-501-B-P-2.8
Mount: DC+BNC
Network: Unsupported
Place of Origin: Guangdong, China
Resolution: 2MP
Sensor: 1/2.9" CMOS
Special Features: Mini shaped
Video Compression Format: Unsupported
Warranty: 1 Year
guinea pig keeping camera: spider keeping camera
hamster keeping camera: iguana keeping camera
insect pets keeping camera: pet reptiles keeping camera
pet keeping camera: snake keeping camera
pinhole camera: mini CCTV camera

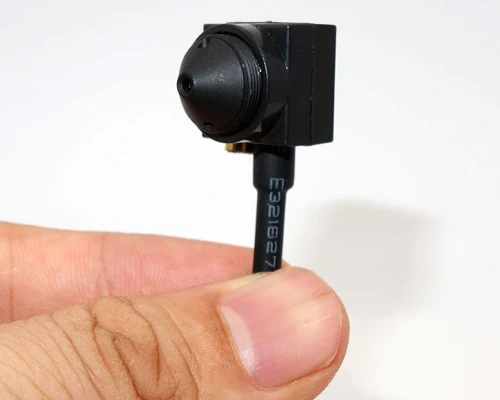

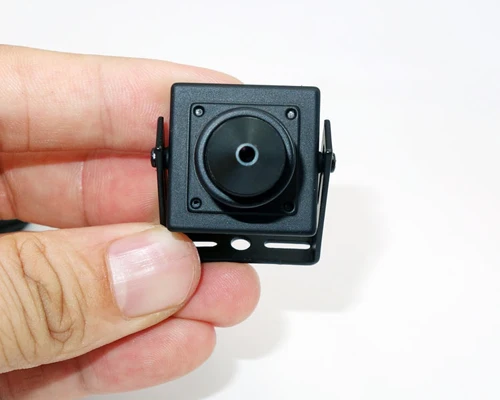

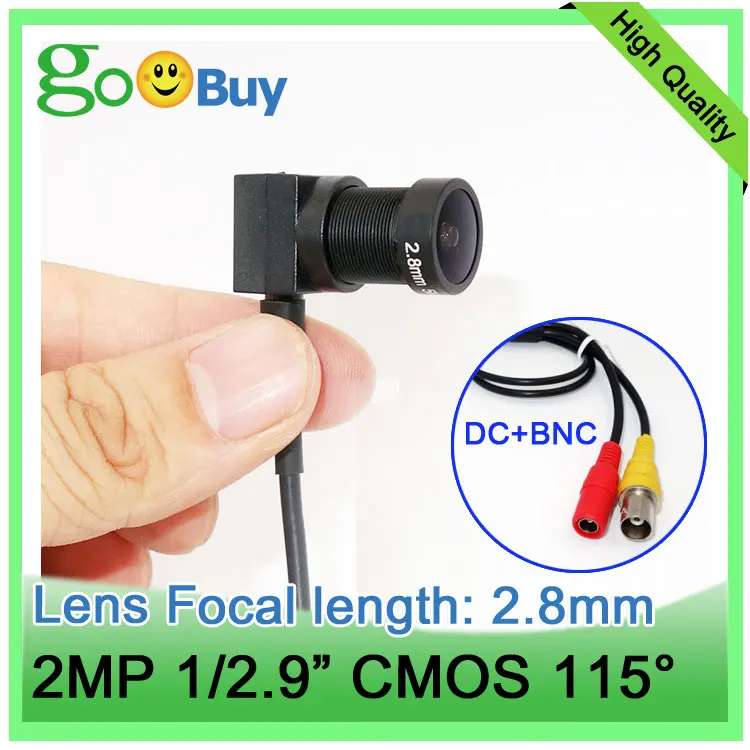

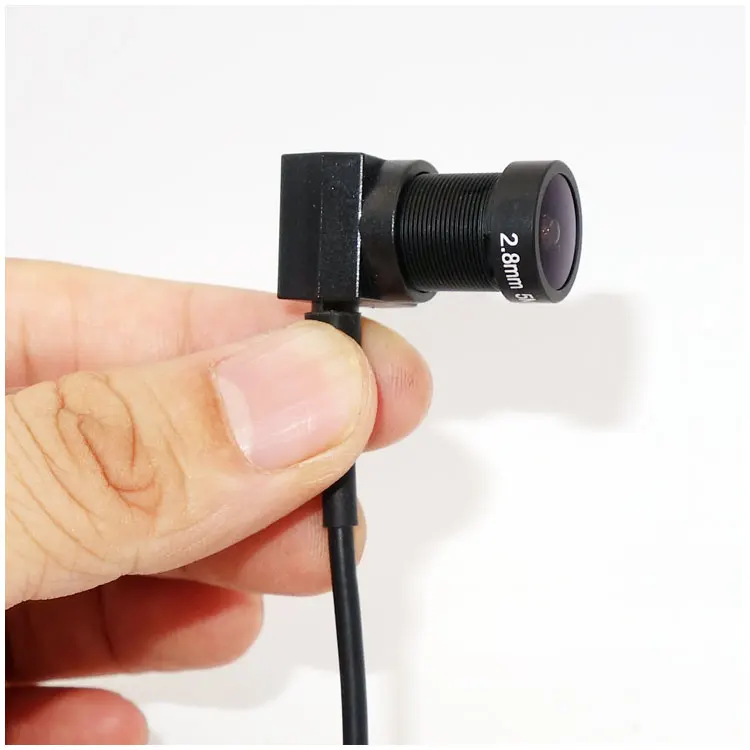

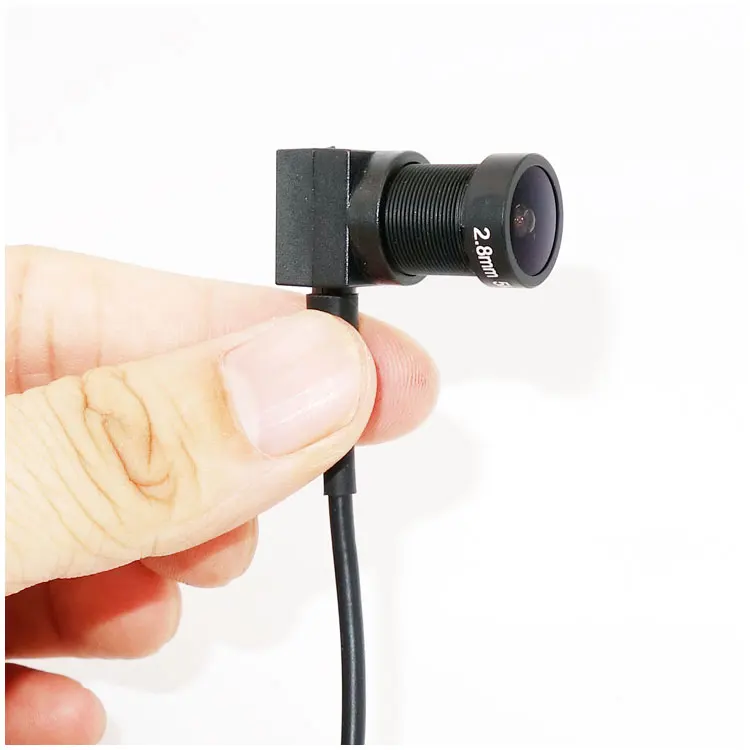

Goobuy 2MP pinhole camera 2.8mm EFL wide angle 98 degree lens 1/2.9" CMOS mini camera
This is a mini pinhole lens camera that can be used for industrial equipment testing, CCTV, self-service terminal equipment, access control system, etc.
1, Image sensor 2.9" CMOS, 0.01Lux, 2MP image
2, Analog signal

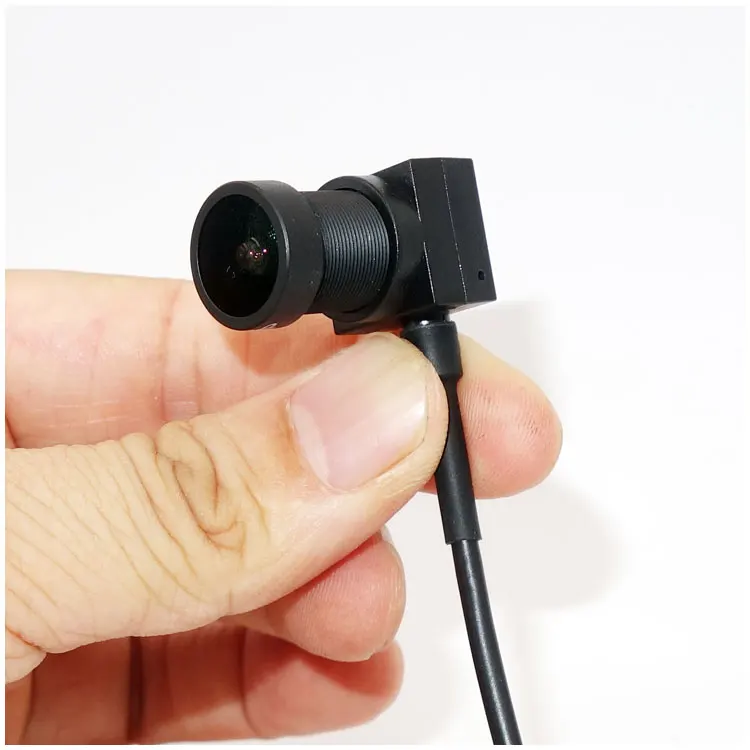

3, Manual focus M12 Lens, interchangable lens design available
4, DC 12V + AV or BNC interface.
5, About 0.5 Meter cable
6, Application: intelligent machine, ATM Machine, Industrial equipment,
medical instrument , Laboratory Instruments
7, Can be customized or ODM based on your requirements。
Product Name |
Pinhole camera |
Cmos Sensor |
1/2.9 inch |
Video Resolution
|
1920*1080P, @30fps |
Lens Focal Length
|
2.8mm |
Lens FOV |
98 degree |
Photo Pixel |
2 Mega pixels |
Photo Format |
MJPG |
Video output |
MJPG/YUY2 |
AGC |
OSD |
Minimum illumination
|
0.01Lux |
S/N Ratio
|
≥52dB |
Gammar |
0.45 |
Backlight Compensation |
OSD |
Shutter |
25f/s |
White balance |
Auto |
Audio Microphone
|
Nonsupport |
System Sync |
Internal |
Power |
12V |
Power consumption |
150mA |
Product Size |

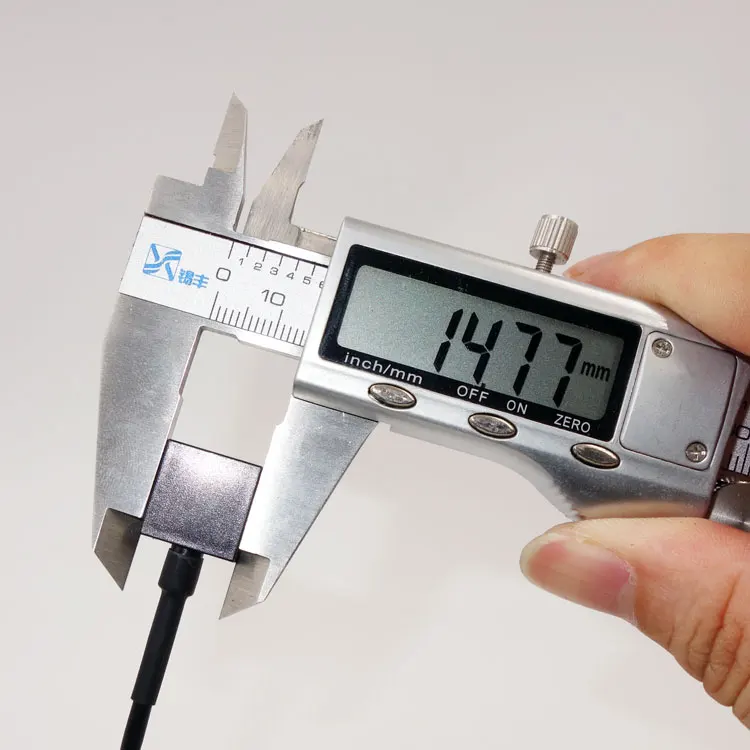

Lens base size: about 15*15mm |
Signal Type & Interface |
AV or BNC interface, Analog Signal |
Length of Cable |
About 0.5 Meter |
Working temperature |
-10~+50℃ |
Attentions
1. This camera has no recording function. If you want to record, you need to connect the camera to the recording device.
2. We can change other focal length fixed focus m12 Lens except above to meet your special demand.
3. Size of PCBA Dimension can be changed or custom too
4, The cameras can be produced for different interfaces.
5. The shape of the product can also be changed according to demand,
6. The above changes can be negotiated, different requirements will increase production costs.
7. The camera is not waterproof.
Camera Application
(1) All-in-one machine, POS equipment, ATM Machine, Self-service terminals equipment, Automatic vending machine, Advertising LCD Displayer, Voting system.
(2)Mobile phone (OTG/Type-C), 3D AR/VR, Smart box, TV BOX, STB, 3D scanner,MID and Ipad, laptop/PC, Any Andriod Device.
(3)Embedded Camera Systems, Iris/Face/Fingerprints/palm prints image recognition technology，USB Document Scanner, Monitoring 3D printer,
(4)Industrial endoscopes，Industrial PC/Machine/equipments，automobile Industry, Vehicle video applications, Car Parking Security
(5) Home/Commercial/Industry security equipment,safety box, Baby Monitoring, Smarthome, Video Door Phone,attendance machine, Home/office/Street Surveillance
(6) AI intelligent machine/Systems/Terminal,Robot and machine vision, Video conference / video teaching, intelligent code scanning Terminal
(7) Laboratory Instruments, remote control monitoring, environmental monitoring
Car and boat control, oil field equipment, Assisting medical beauty treatment
Medical Diagnostic video acquisition and Precise medical instrument
(8) Raspberry PI / Jetson Nano intelligent robot device etc .
CUSTOM OPTIONS
CUSTOM SOLUTIONS
Spinel provides a selection of various custom options for new and existing projects. We also welcome any unique requests. Design, development, prototyping, and mass production are offered at reasonable prices. Our team works closely with each client to assure satisfaction from start to finish. We do not require any minimum quantity orders, in order to provide a prosperous and welcoming environment for bright ideas to shine.
Customization options include, but are not limited to:
Specific image sensor requirements, WDR, panoramic, thermal, Dual lens, low-light capturing, different angles of view, infrared solutions, low temperature rated, weatherproof, wire harness, cable assembly, desired power voltage, resolutions, frame rate, unique serial number, etc.1. Other lenses are optional,

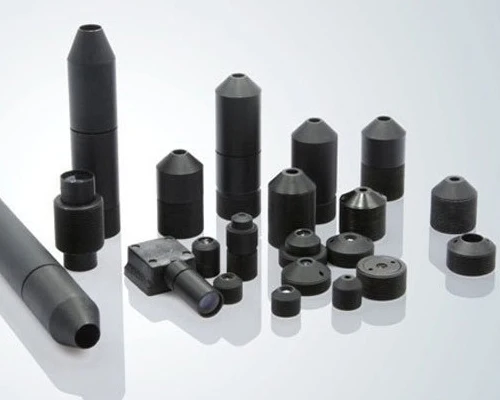

Various M12 lenses Various Wide angle lens Various M12 telephoto lens Various shaped lens etc
2. Other shapes are optional,

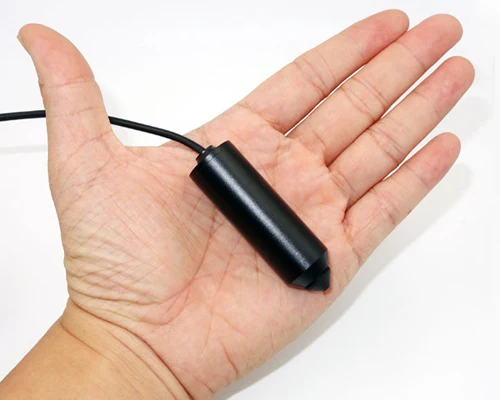

Mini cube shaped Mini bullet shaped Mini square-shaped Bullet shaped
3. Other interfaces are optional,
Type C interface Micro USB interface DC+AV interface DC+BNC interface
How to choose the right lens
1. Choose the focal length of the lens according to the sensor and viewing Angle requirements.
The greater the focal length of lens, the farther you can see and the smaller the angle of view;
The smaller the focal length of lens, the closer you look, and the greater the angle of view.
The figure below shows the best monitoring distance for different focal lengths.
